Mission-ready. Tactical tough. Functional fashion.
Introducing the Rig; Mission-ready. Tactical tough. Functional fashion.
Introducing the GATORZ Rig, a cutting-edge addition to our renowned line of eyewear, blending style with unparalleled functionality. Designed to cater to the needs of outdoor enthusiasts, tactical professionals, and craftsmen alike, the Rig embodies a new era of practical yet stylish eye protection.
A functional workhorse frame for tactical users and for anyone who needs dependable eye protection outdoors: duty, the range, outdoor work and rugged everyday use.
Wrap coverage
Curved to follow the face (Base Curve 6) for protection around the eyes.
Fits your face
The aluminum frame bends wider or narrower to fit. The nose pad adjusts separately on two axes (X and Y).
Lens options
Non Polarized, OPz and Photochromic.
Optional: MIL-SPEC Ballistic lenses
Available as an option, not on every Rig. MIL-SPEC Ballistic versions are tested to MIL-PRF-32432A, Clause 3.8.4.1, with a fragment simulating projectile (T37).
MILSPEC PERFORMANCE

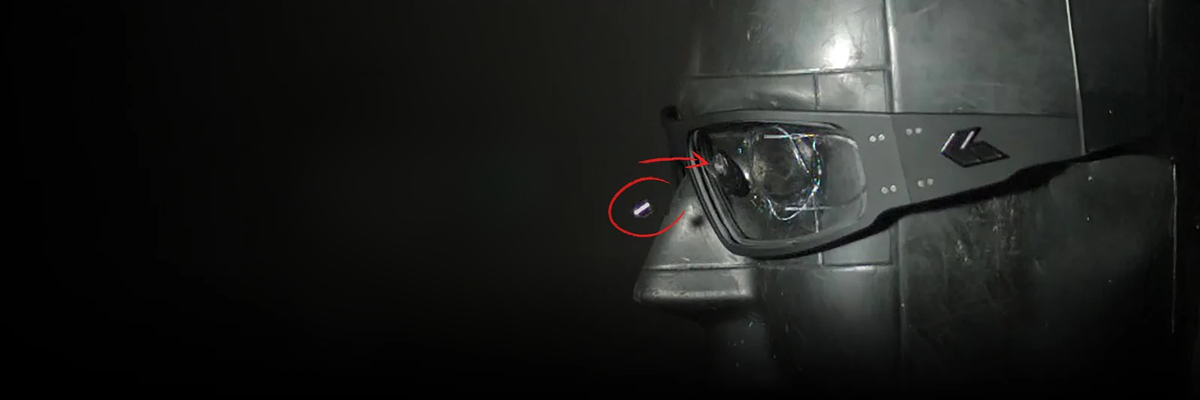

Every GATORZ MILSPEC frame and lens combination meets the Military Specification MIL-PRF-32432A, Clause 3.8.4.1, for fragment impact protection. Each pair is engineered to withstand up to seven times more impact energy than the ANSI Z87.1+ impact standard requires. This resistance is verified with the MIL-SPEC test protocol, which uses a 0.15 caliber, 5.85 grain fragment simulating projectile (T37) travelling at 700–725 feet per second, striking the lens at a critical point.
MILSPEC
IMPACT: 0.15 caliber, 5.85 grain T37 fragment simulating projectile, 700–725 feet per second
ANSI Z87.1+ INDUSTRIAL SAFETY GLASSES
IMPACT: 1/4" steel ball, 150 feet per second
*Test projectiles shown to scale

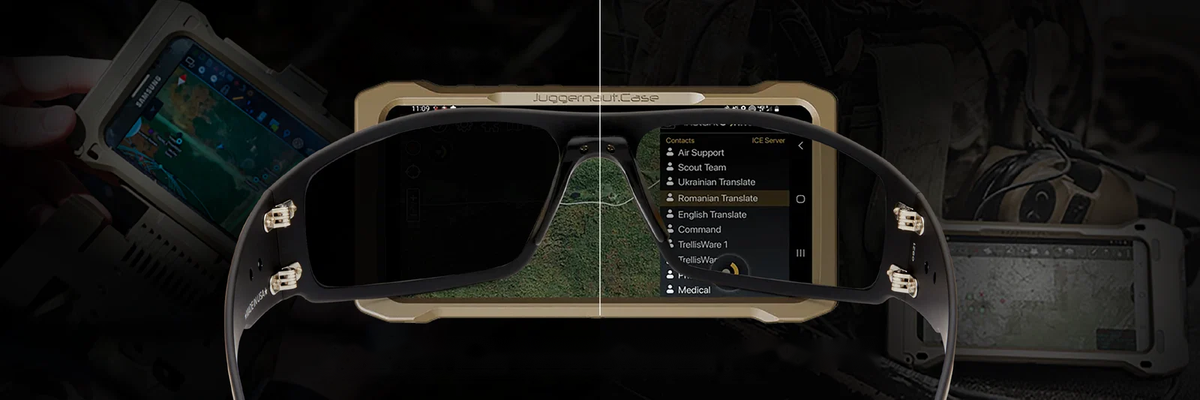

Polarized vs OPz
Left: Polarized · Right: OPz
Our advanced TruRay® OPz (Optimized Polarized) lens technology is designed to reduce glare and enhance visual clarity without blocking digital screens. All of our lenses are crafted from high-quality polycarbonate, ensuring durability and impact resistance. Like standard polarized lenses, TruRay® OPz polarization filters out reflected horizontal light waves from reflective surfaces like water, roads, and snow, improving contrast, color perception, and visual sharpness while reducing eye strain — without interfering with your digital devices.

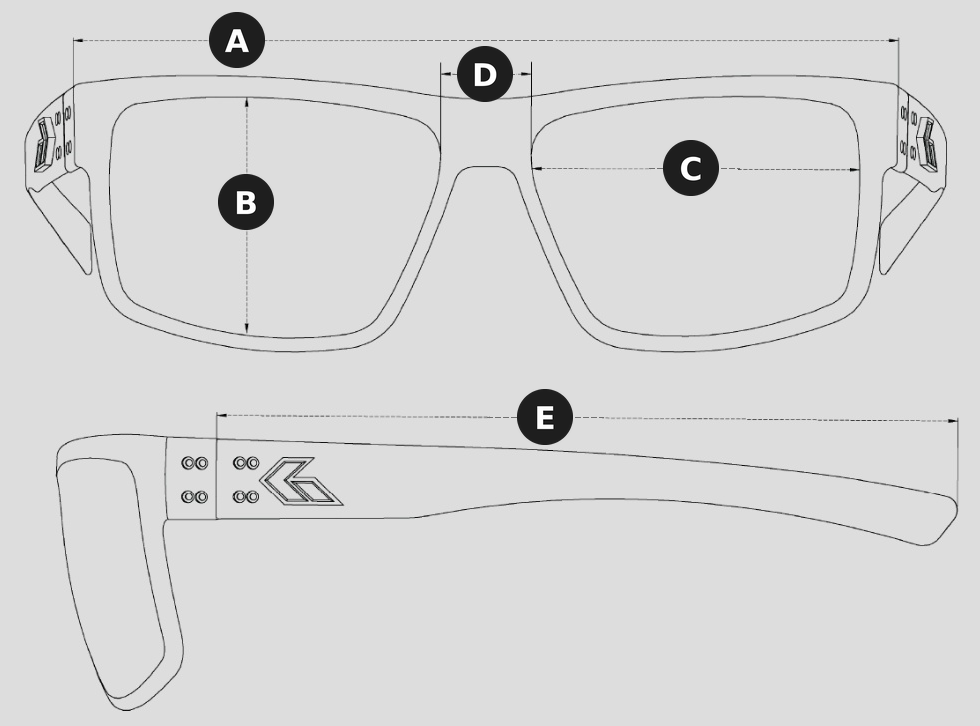

Rig Frame Measurements
| Frame width | 145mm | |
|---|---|---|
| Lens height | 44mm | |
| Lens width | 60mm | |
| Bridge width | 18mm | |
| Temple length | 130mm | |
| Base Curve | 6 |
